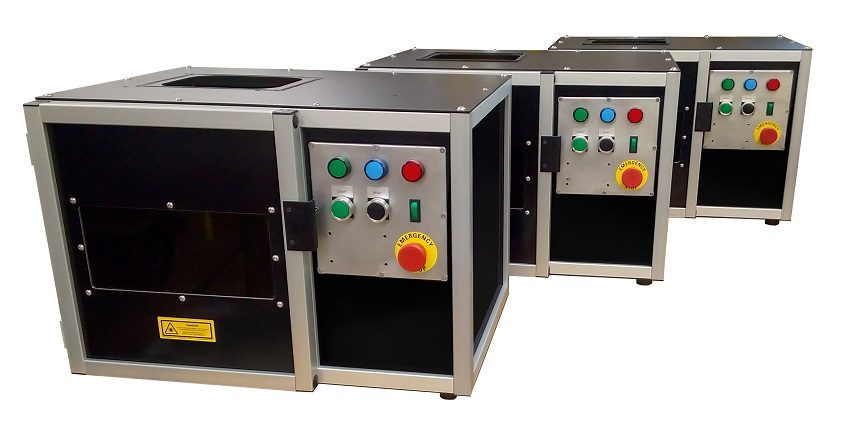

KME-S
Benchtop Laser Marking Enclosure
For Use with Keyence MD-X, MD-U & MD-F Laser Markers
* Laser Marker Not Included
Introducing our cost-effective laser marking enclosure for
use with Keyence MD-X, MD-U & MD-F laser markers.
This enclosure is specifically designed to provide a secure
and stable environment for your Keyence laser marker,
ensuring precision and safety for all of your marking
applications.
The space efficient design allows for a wide range of part
sizes, while still being compact enough for easy integration
into any workspace.
With its affordable price point, this enclosure is the perfect solution for businesses looking to optimize their marking process.
Learn more about Keyence Laser Markers Here
* Laser Marker Not Included
Features
- Model-Specific Laser Marker Mount Plate
- Large Safety-Interlocked Access Door
- Laser Marker Focal Zone Visual Reference
- 9-1/2" x 9-1/2" Scissor Jack Part Platform

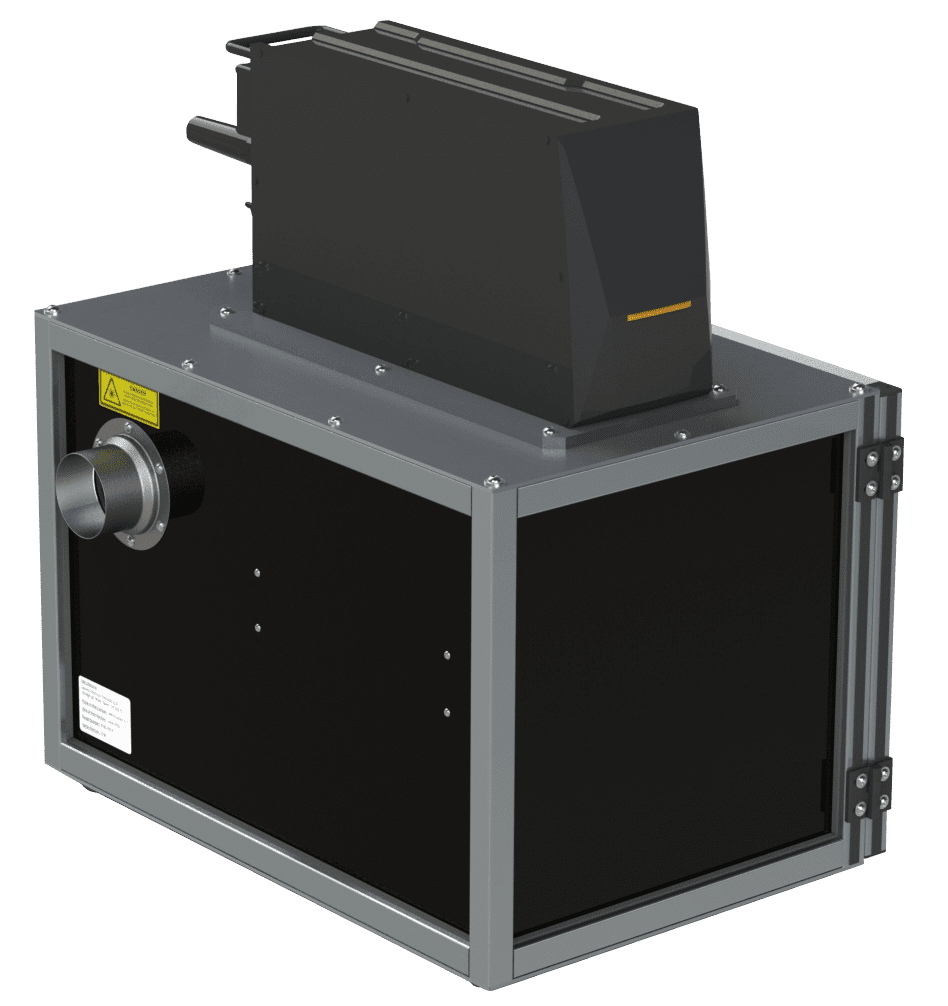

- Fume Extractor Port with Cover
- LED Interior Light
- Control Panel with Indicator Lights, Start/Stop Buttons, E-Stop and Light Switch
- Fits Parts Up to 22" Long x 13" Wide x 7" High
Enclosure Models
Standard Size
$4895.00
For Standard Marking Area & Small Spot Marking Area Lasers
Enclosure Dimensions
24″ L x 16″ W x 16-1/4″ H
Enclosure Model
Keyence Laser
Marking Area
KME-SS-X
MD-X
Standard
KME-SSP-X
MD-X
Small Spot
KME-SS-U
MD-U
Standard
KME-SS-F
MD-F
Standard

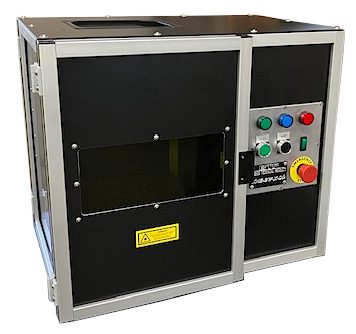

Tall Size
$5280.00
For Wide Marking Area Lasers
Enclosure Dimensions
24″ L x 16″ W x 20-3/4″ H
Enclosure Model
Keyence Laser
Marking Area
KME-SW-X
MD-X
Wide
KME-SW-U
MD-U
Wide
KME-SW-F
MD-F
Wide
Need rotational capabilities for your marking application? Check out our series of Rotary Indexer Kits
Watch for a Detailed Look
Maximum Part Height
| Enclosure Model | Max Part Height (with Scissor Jack) | Max Part Height (Scissor Jack Removed) |
|---|---|---|
|
KME-SS-X |
6.9" |
9.6" |
|
KME-SS-U |
6.9" |
9.6" |
|
KME-SS-F |
7.7" |
10.4" |
|
KME-SSP-X |
10.1" |
12.8" |
|
KME-SW-X* |
7.0" |
9.7" |
|
KME-SW-U* |
7.0" |
9.7" |
|
KME-SW-F* |
7.0" |
9.7" |
* Max part height listed for tall enclosures is with a wide marking area laser (300mm Focal Length)
SEE MORE DIMENSIONS ON THE PRODUCT SHEET:
Accessories

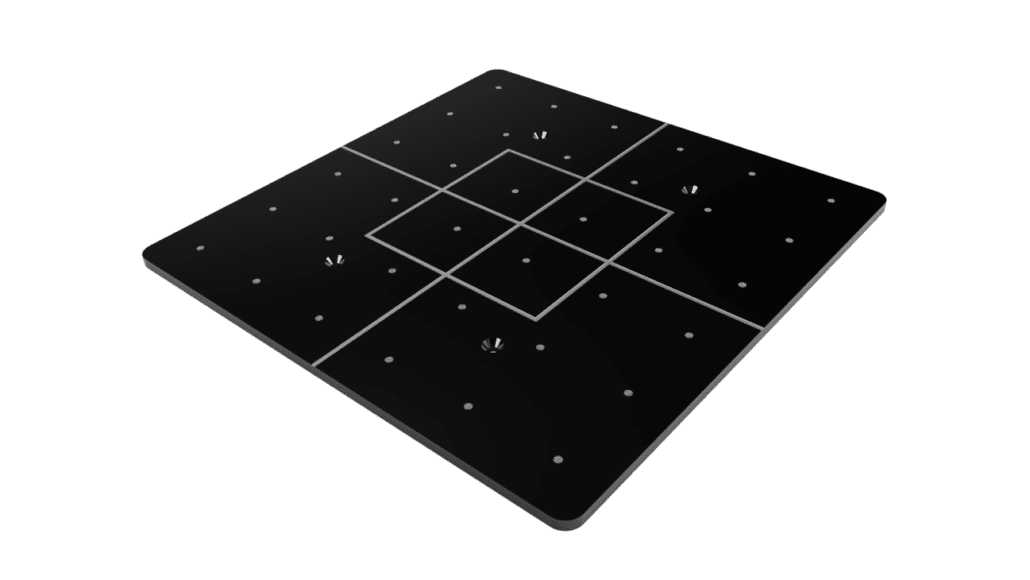

Fixture Plate

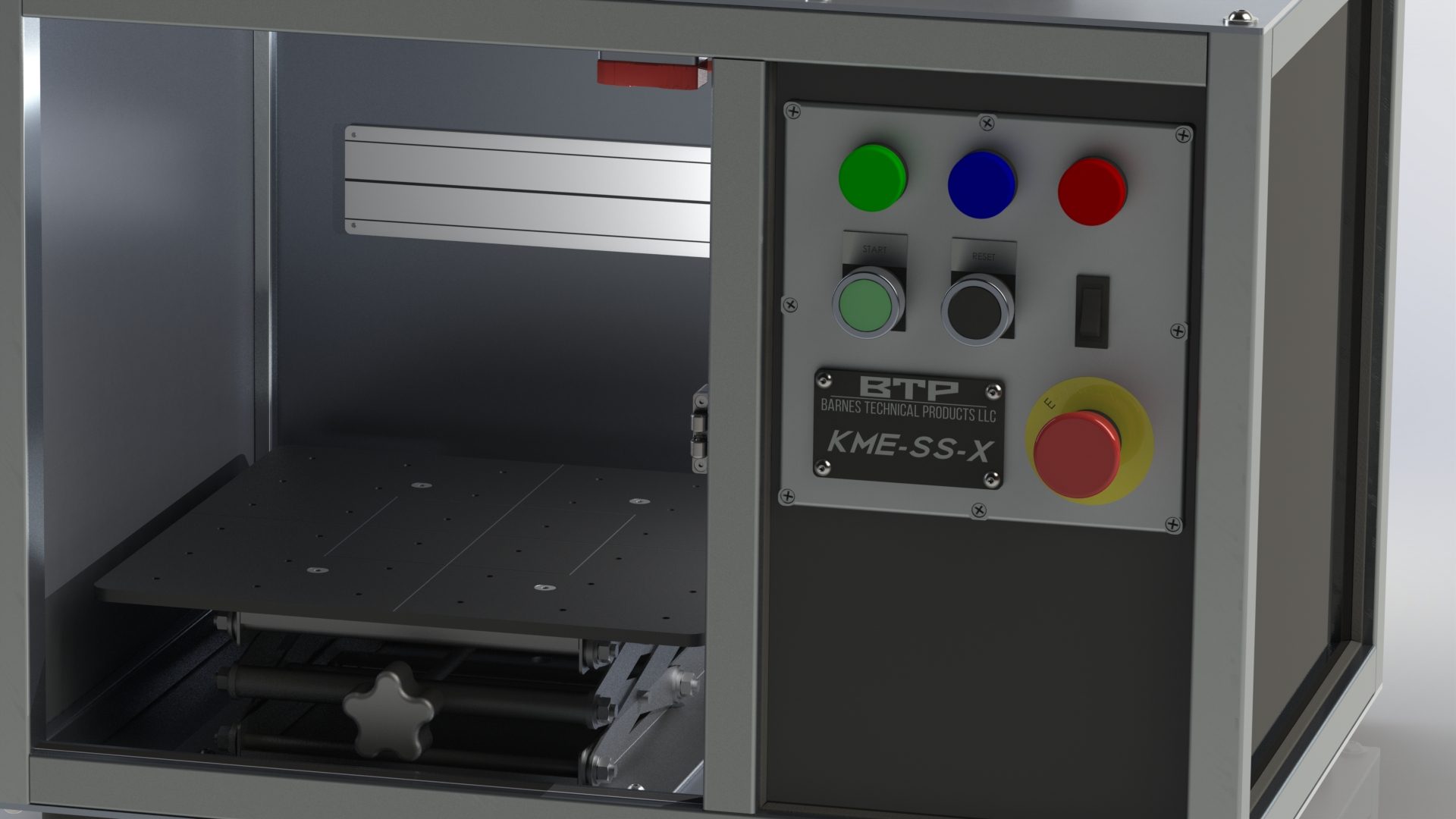

Our fixture plate mounts to the top of the scissor jack part platform and provides a large 12″ x 12″ surface to locate and mount parts or tooling with accuracy.
The plate is made from black anodized aluminum and has 32 tapped mounting holes (#10-32) for securing parts or fixtures with ease.
The fixture plate also features engraved center marking crosshairs to indicate the center of the laser marking window. An engraved square also shows the limits of the 125mm x 125mm standard marking area.
Features
- 32 Tapped Mounting Holes (#10-32 thread)
- Engraved Center Marking Crosshairs
- Engraved Standard Marking Area Window
- Material: Black Anodized Aluminum
- Size: 12" x 12"
Model Number: KME-FPS-12
Price: $295.00

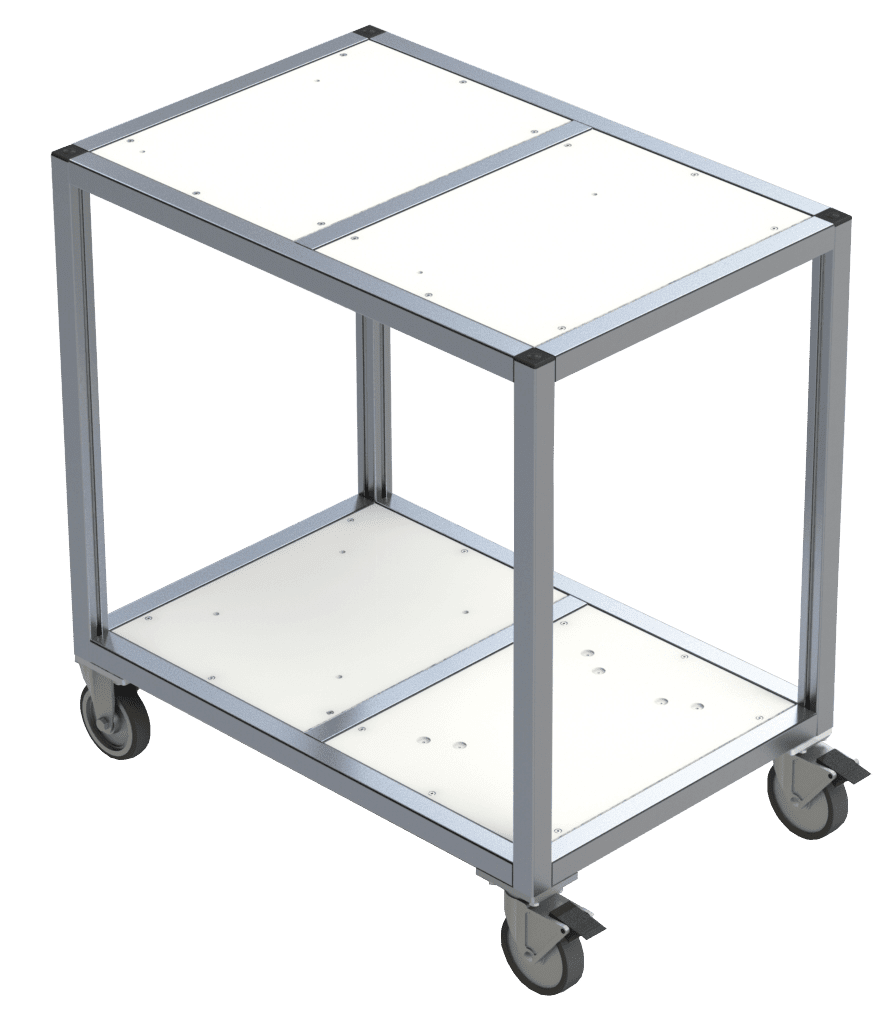

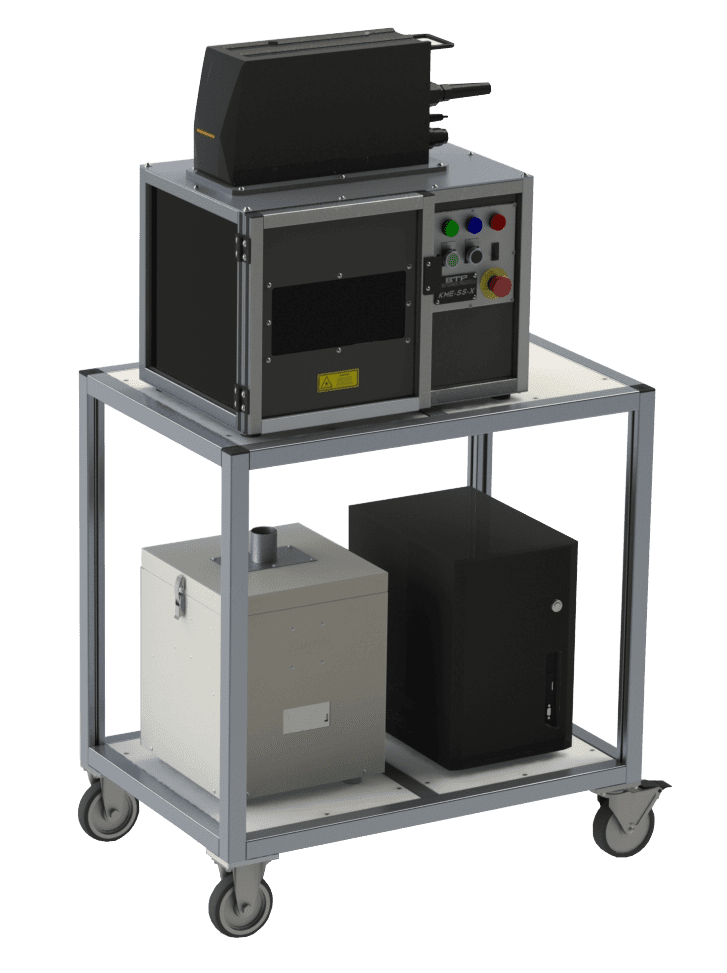

Equipment Cart
This cart is specifically designed to hold our KME-S Laser Marking Enclosure, as well as the Keyence MD-X, MD-U or MD-F Laser Marker Controller. It provides a compact, mobile solution for your entire laser marking system.
We recommend utilizing The Fumex FA1-Mini Fume Extractor if your laser marking application requires ventilation and air filtration. Our cart includes a designated location and mounting provisions for this unit, however an alternative fume extractor may be used in this space.
The cart ships fully assembled, and hardware is included to mount our laser marking enclosure, Keyene controller and Fumex fume extractor.
* Laser Marker, Controller & Fume Extractor Not Included
Features
- Mounting Provisions for Keyence MD-X, MD-U & MD-F Controllers
- Mounting Provisions for Fumex FA1-Mini Fume Extractor
- Mounting Hardware Included
- Two 5" Locking Swivel Casters & Two Rigid Casters
- Ships Fully Assembled
- Size: 36"L x 24"W x 37-3/4"H
Model Number: KMC-1
Price: $1995.00
Workholding Kits
Improve the speed and accuracy of your laser marking operations by using one of our workholding kits.
With three kits available, each one is designed to mount to our fixture plate and provides numerous different options for securing parts.
- Flat Jaw & V-Jaw Vise Kits

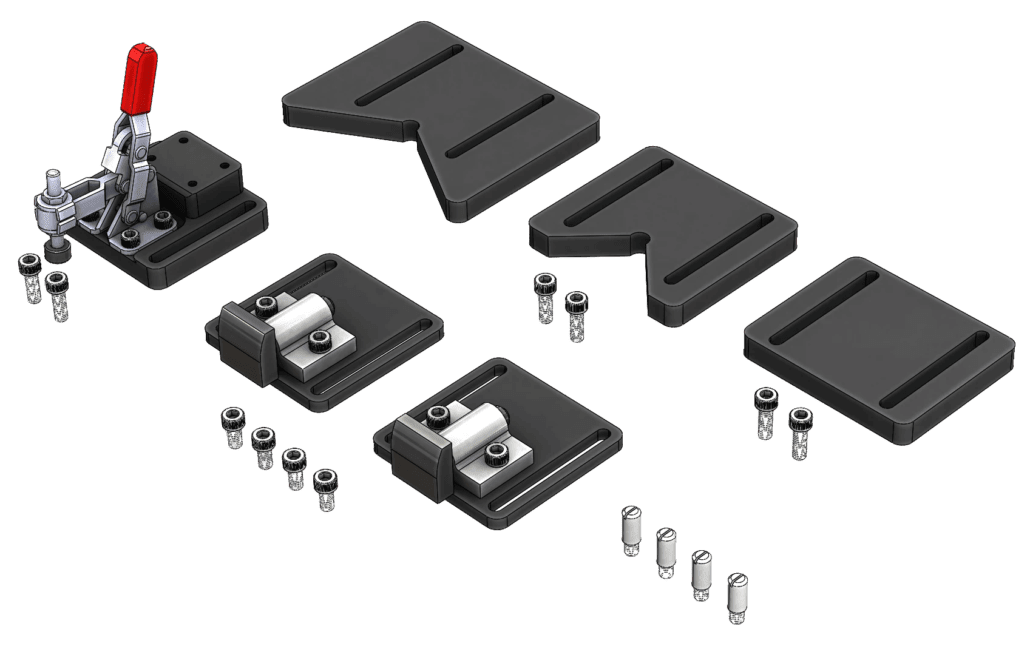

- Modular Part Holding Kit
- Angle Bar Kit
Visit our Workholding Kit page to see the available options, pricing and for more information.

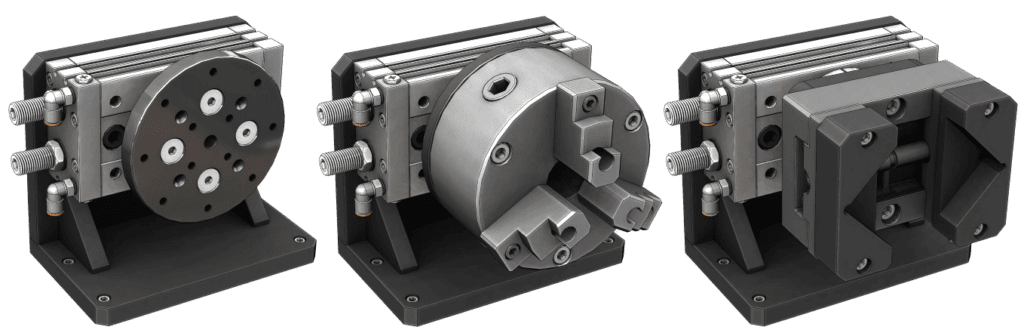

Rotary Indexer Kits
Seamlessly integrate rotational capabilities to your laser marking enclosure with one of our rotary indexer kits.
Available in both manual and pneumatic options with a choice of three workholding methods.
Visit our Rotary Indexer Kit page to see the available options, pricing and for more information.

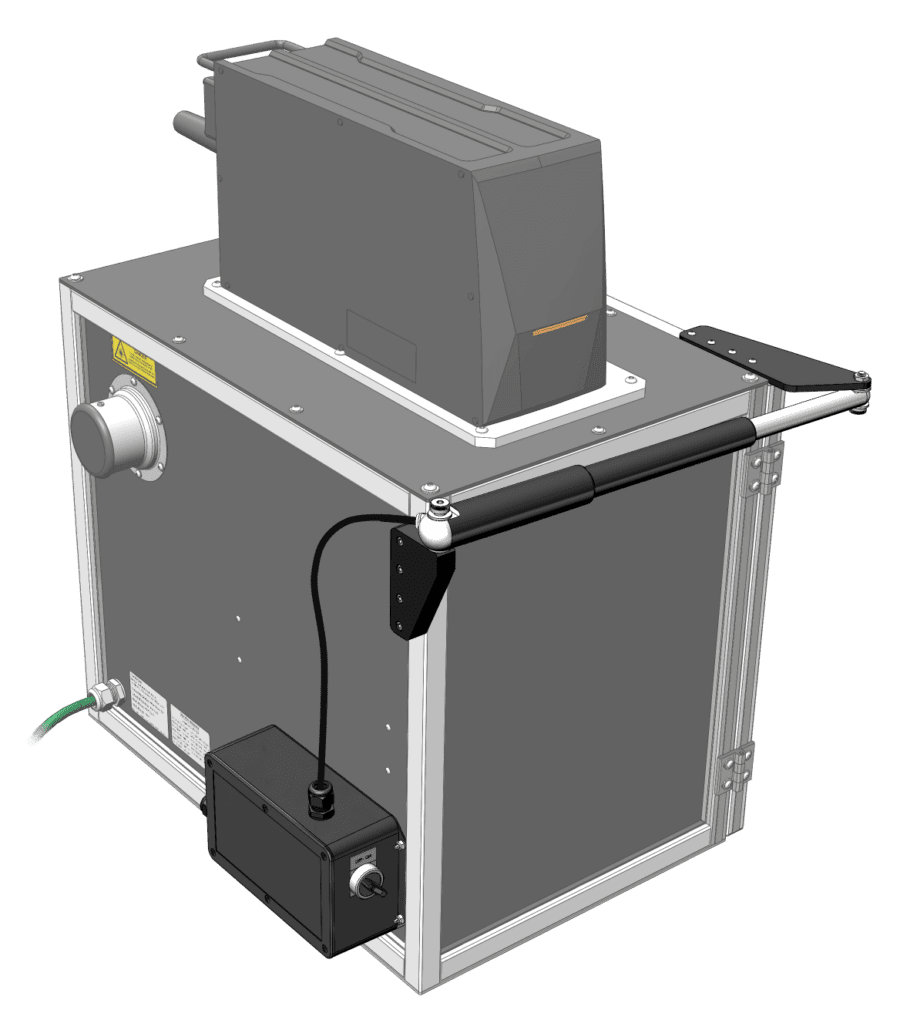

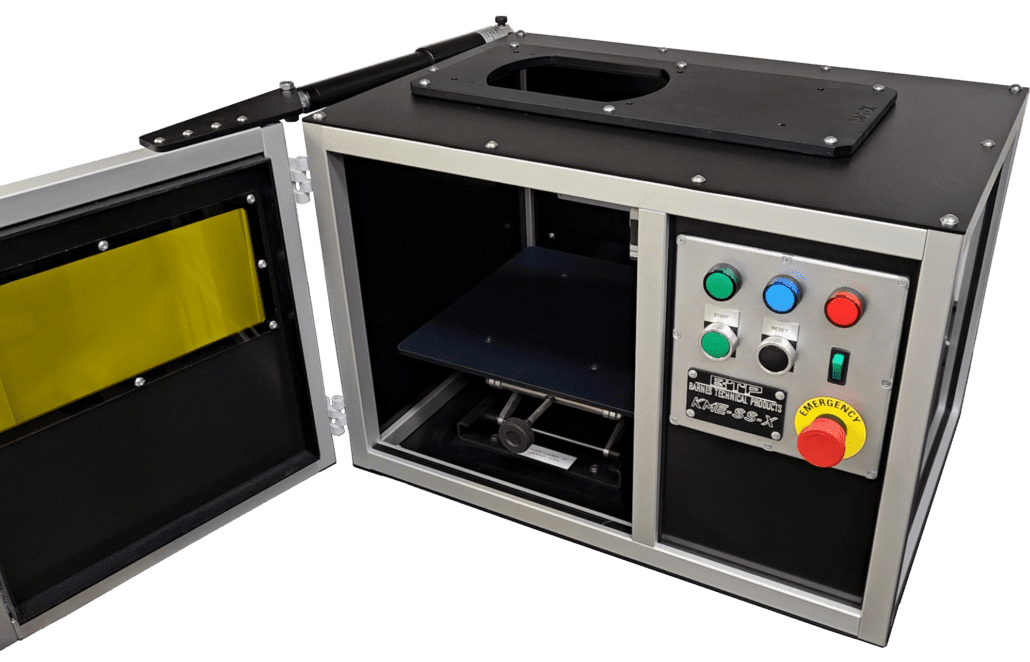

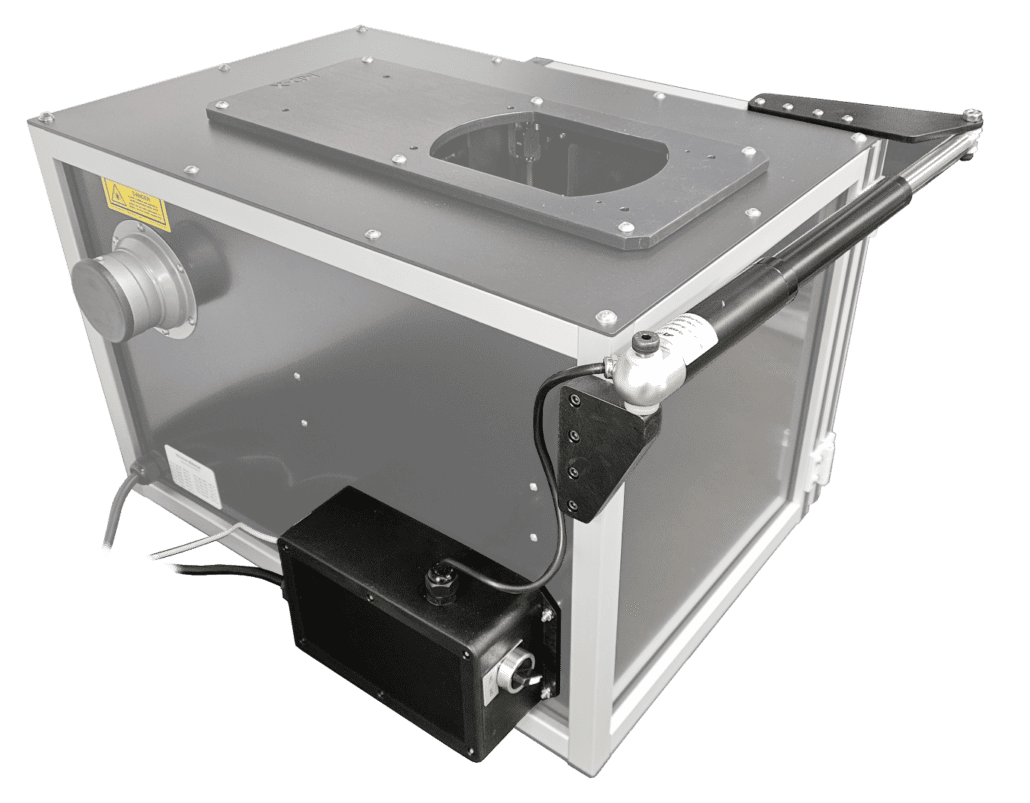

Automatic Door Kit
Compatible with both our standard and tall size enclosures, this kit features an electric actuator that seamlessly automates the opening and closing of the enclosure door.
Simply provide a 5V, 12V, or 24V DC signal to the Automatic Door control box to instantly command the opening and closing of your laser marking enclosure door.
Designed with versatility in mind, the Automatic Door Kit is an excellent addition for those utilizing automated loading systems, such as robot arms or pick and place units, providing a seamless and efficient workflow in your laser marking process.
* Laser Marker Not Included
* Laser Marker Not Included
Features
- Compatible with Standard and Tall Size Enclosures
- Activated Using a 5V, 12V or 24V DC Signal
- Ideal for Use with Automated Loading Systems
- Dedicated Control Box with On/Off Switch
- Comes Fully Installed with Your Enclosure
Model Number: KAD-1
for Pricing and Additional Information
Order
Place an order by phone or fill out the following form and we will get in touch to complete the order.
