Rotary Indexer Kits

Vertical Axis Rotary Indexer Kits

Add rotary indexing functionality to your laser marking process or other industrial application with our versatile line of rotary indexer kits, available in both manual and pneumatic versions with either a horizontal or vertical rotation axis.

Designed for easy integration with our KME series enclosures, these kits allow you to mark multiple positions on cylindrical, square, or irregularly shaped parts.

Perfect for industrial settings, our rotary indexer kits provide an affordable solution to add further capability to your laser marking enclosure.

Features

Manual Rotary Indexer with Thumb Screw Lock
Twelve 30 Degree Indexing Increments
Three Models for Different Workholding Requirements
Simple Mounting to Fixture Plate (Hardware Included)
Mounts in Multiple Positions & Orientations
Custom Vise Jaws and Workholding Fixtures Available

See the manual rotary indexer kit product sheet for dimensions, specifications, and enclosure fit information.

Base Indexer Kit

Model Number: KRI-MH-B

$1,600

The base indexer kit features a blank mount disc with a series of tapped mount holes for attaching your own fixture or workholding device.

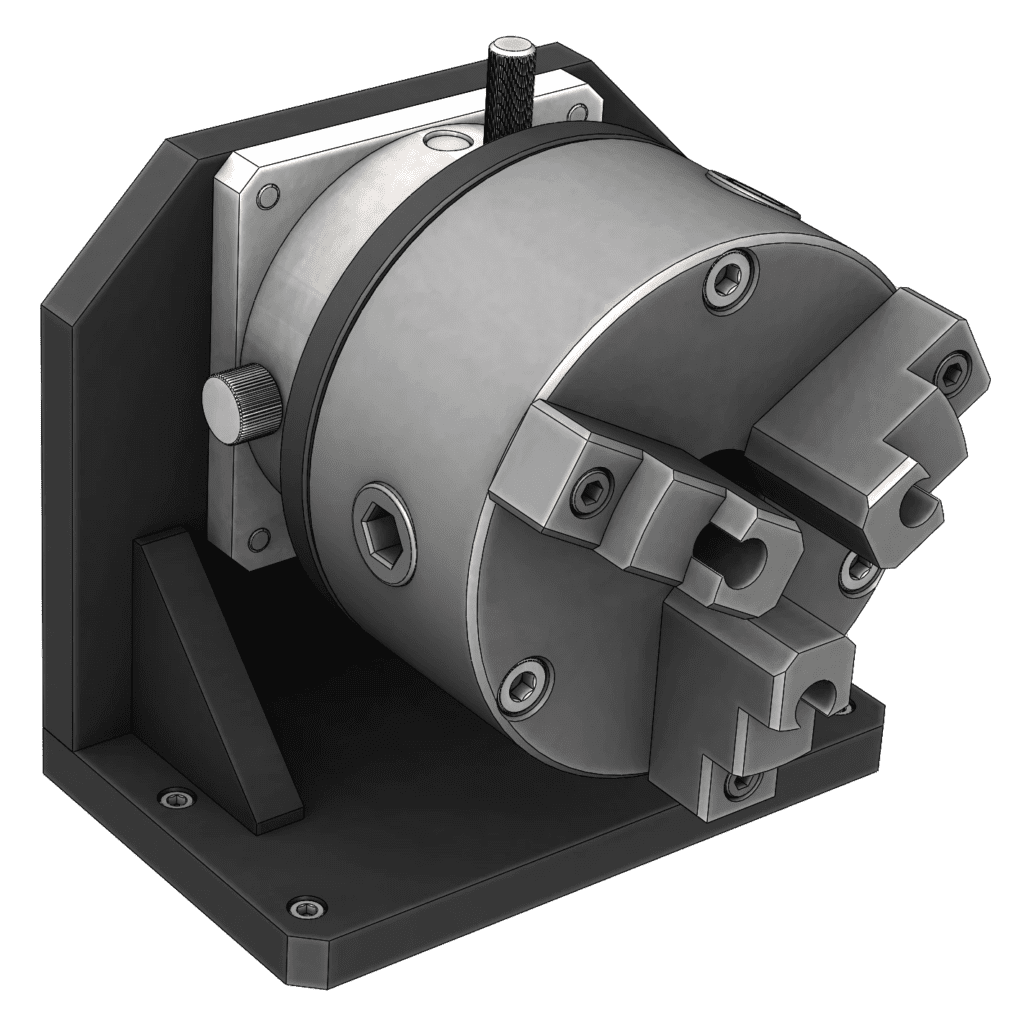

Chuck Indexer Kit

Model Number: KRI-MH-C

$2,350

The chuck indexer kit includes a precision 3-jaw chuck with reversible mounted jaws for holding a variety of round or hexagonal parts.

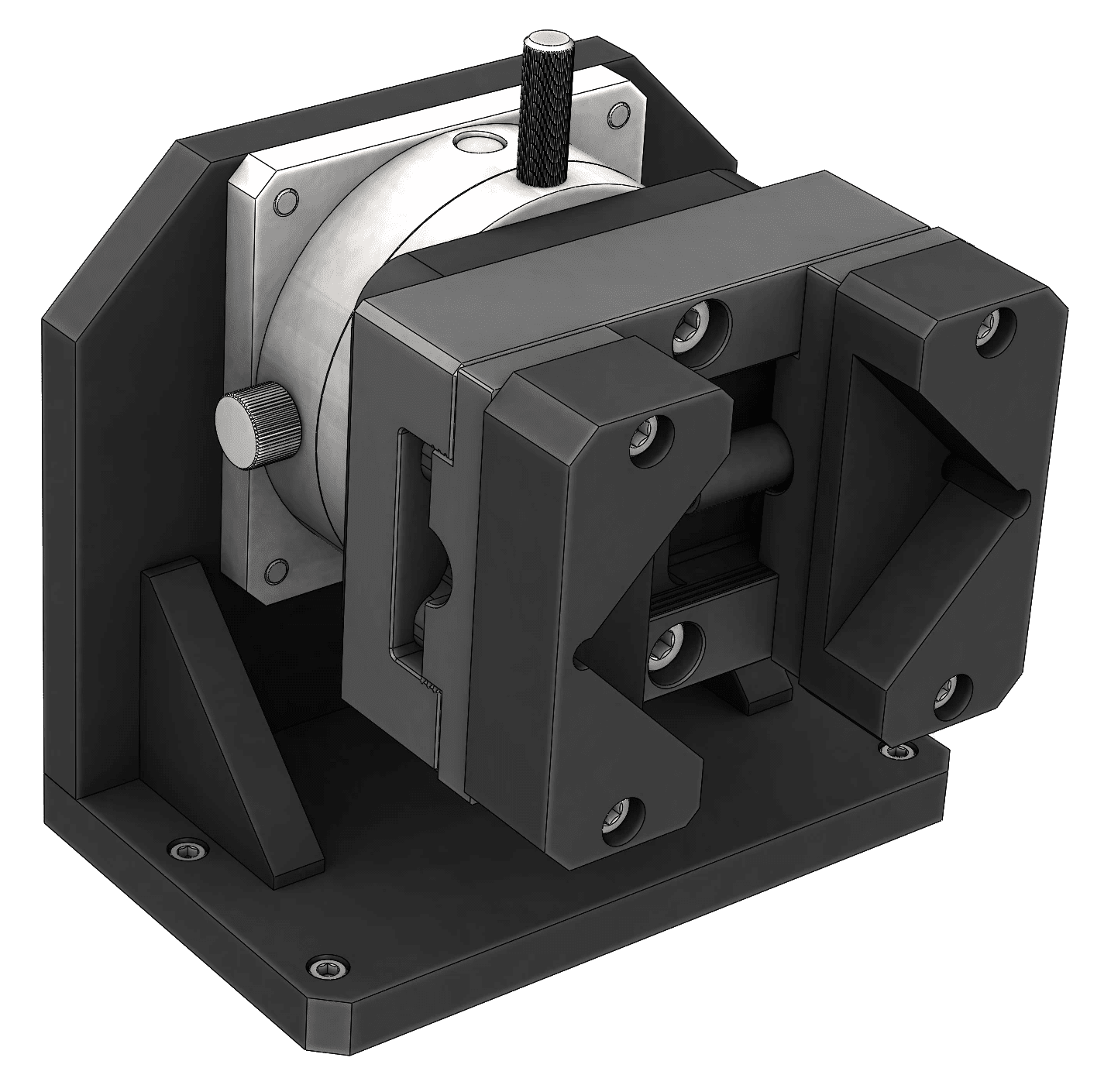

Vise Indexer Kit

Model Number: KRI-MH-V

$2,350

The vise indexer kit is equipped with a versatile self-centering vise with replaceable jaws that can grip square, round, or irregular-shaped parts.

Features

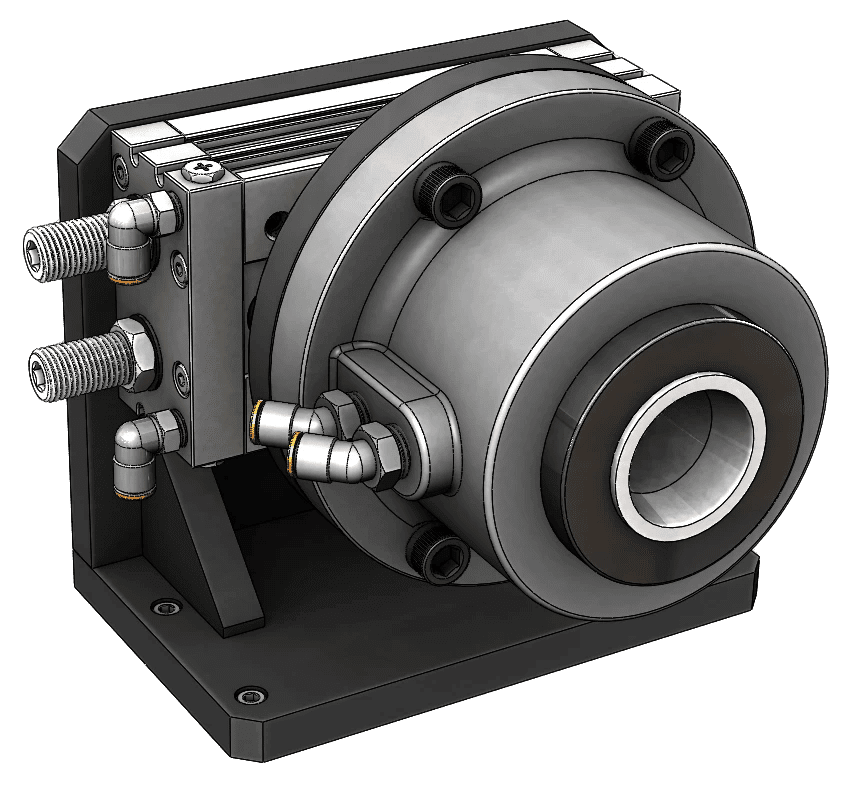

Two Position Adjustable Pneumatic Rotary Actuator
Adjustable Travel Between 0 - 190 Degrees
Three Models for Different Workholding Requirements
Simple Mounting to Fixture Plate (Hardware Included)
Mounts in Multiple Positions & Orientations
Custom Vise Jaws and Workholding Fixtures Available

See the pneumatic rotary indexer kit product sheet for dimensions, specifications, and enclosure fit information.

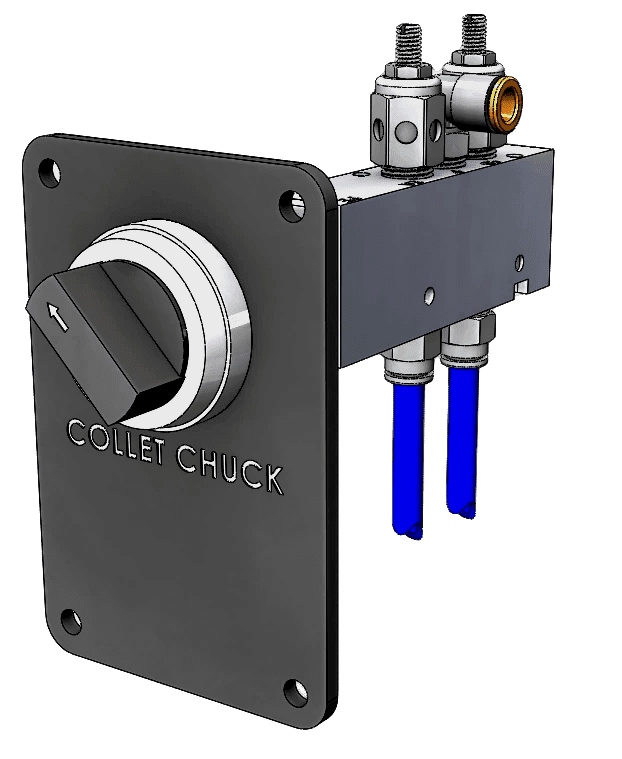

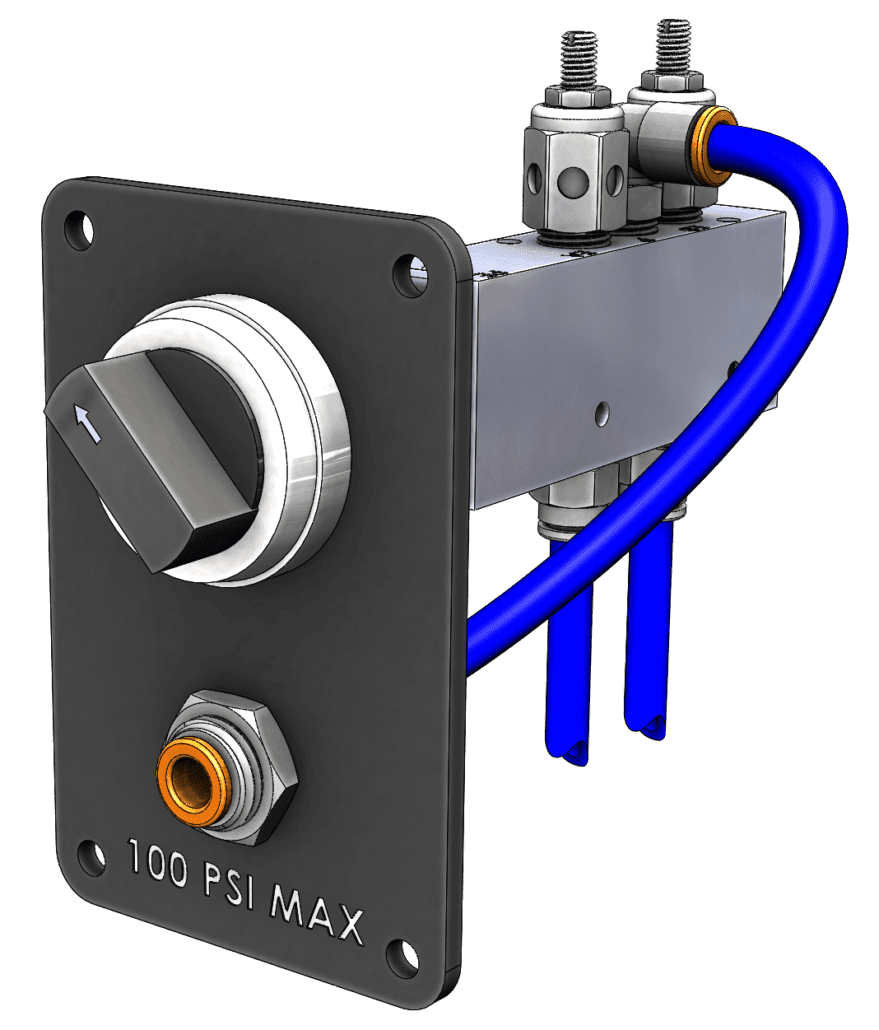

All our pneumatic rotary indexer kits come with a selector switch assembly, enabling operators to cycle the rotary indexer between positions from outside the enclosure.

Our Standard and Tall KME series enclosures include a blanking plate, allowing the selector switch assembly to easily be added to an existing enclosure. If you order an enclosure with a pneumatic rotary indexer kit, the selector switch assembly will come fully installed.

Interfacing is simple and straightforward – just connect a 1/4″ diameter pressurized air line to the push-to-connect pneumatic fitting.

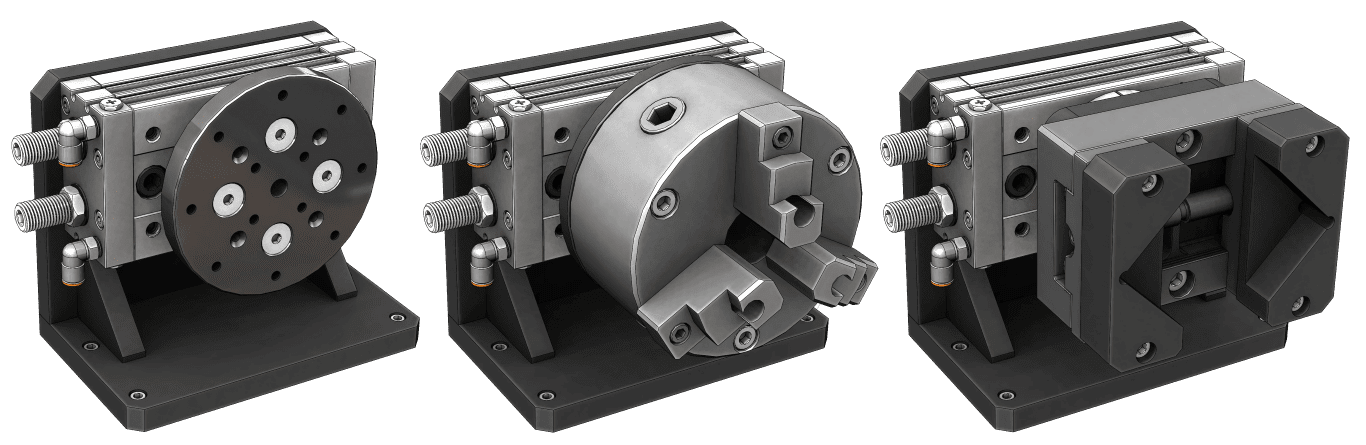

Base Indexer Kit

Model Number: KRI-PH-B

$1,970

The base indexer kit features a blank mount disc with a series of tapped mount holes for attaching your own fixture or workholding device.

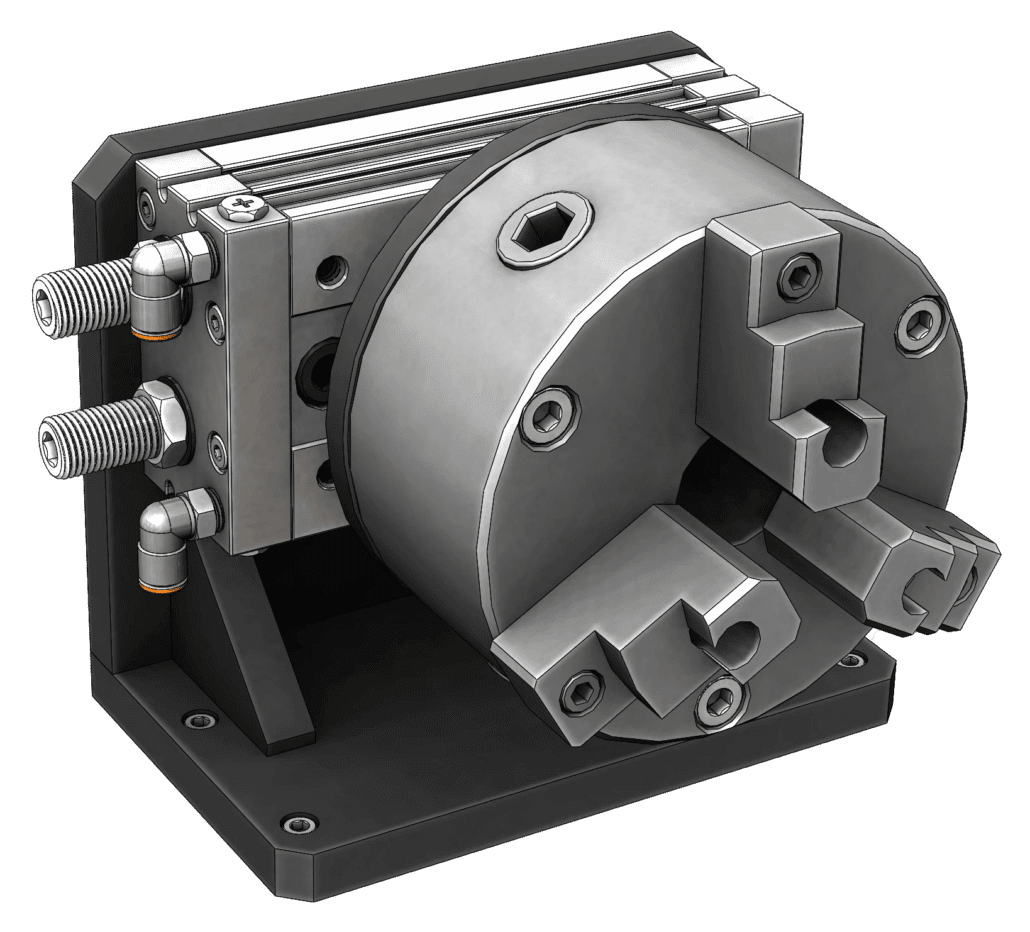

Chuck Indexer Kit

Model Number: KRI-PH-C

$2,680

The chuck indexer kit includes a precision 3-jaw chuck with reversible mounted jaws for holding a variety of round or hexagonal parts.

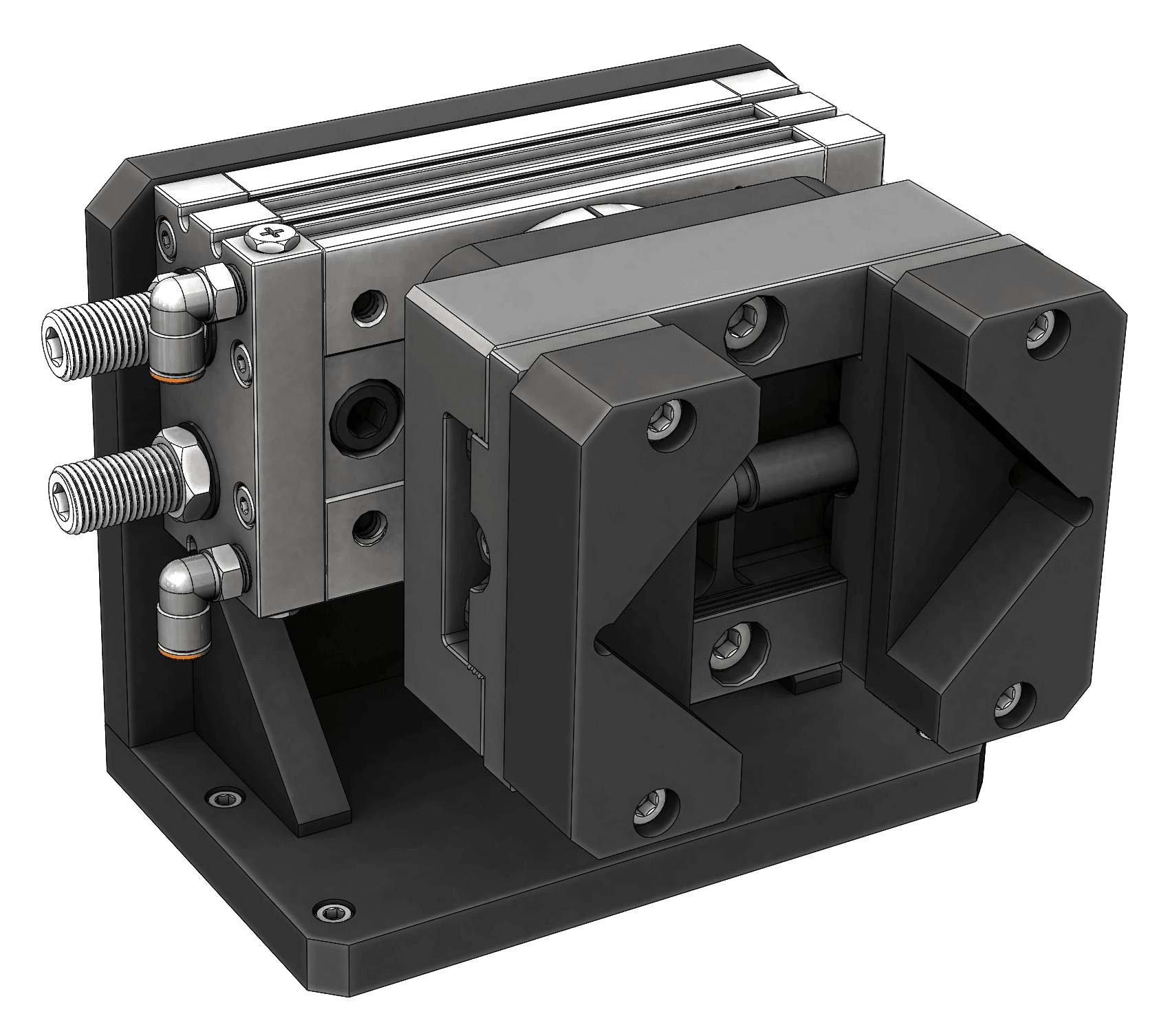

Vise Indexer Kit

Model Number: KRI-PH-V

$2,680

The vise indexer kit is equipped with a versatile self-centering vise with replaceable jaws that can grip square, round, or irregular-shaped parts.

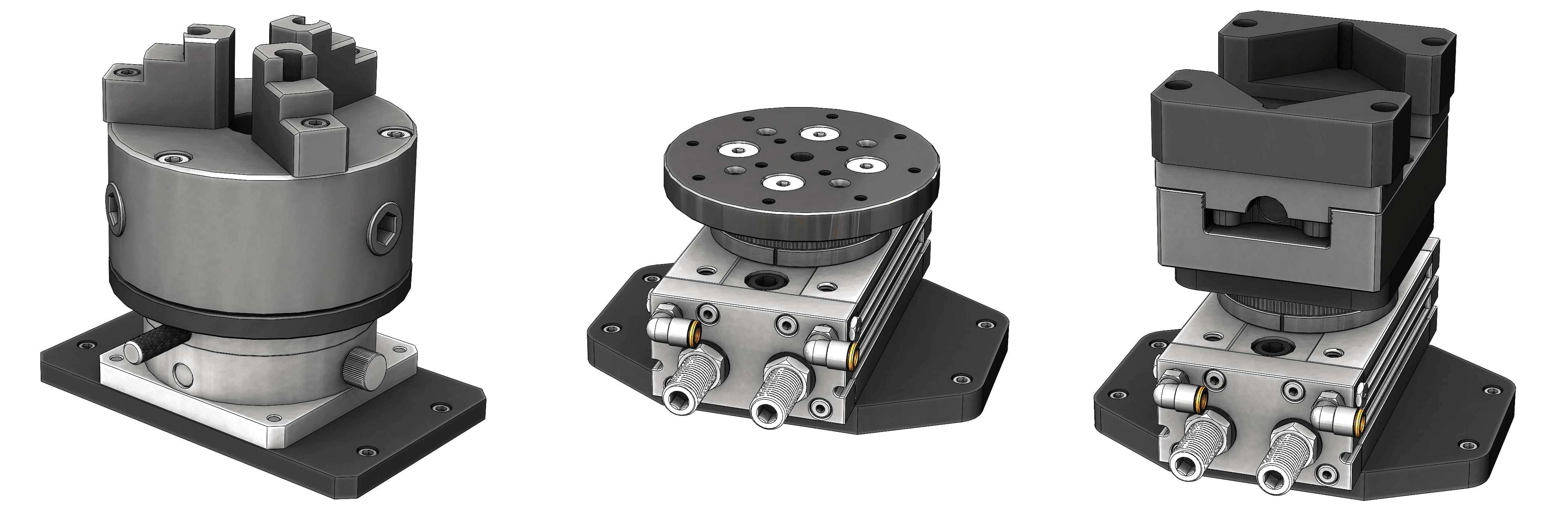

Our vertical rotary axis indexers are available in both manual and pneumatic options and can be incorporated into our KME series enclosures or used as a standalone solution for other industrial applications.

Manual

Manual Rotary Indexer with Thumb Screw Lock
Twelve 30 Degree Indexing Increments
Three Models for Different Workholding Requirements
Simple Mounting to Fixture Plate (Hardware Included)
Mounts in Multiple Positions & Orientations
Custom Vise Jaws and Workholding Fixtures Available

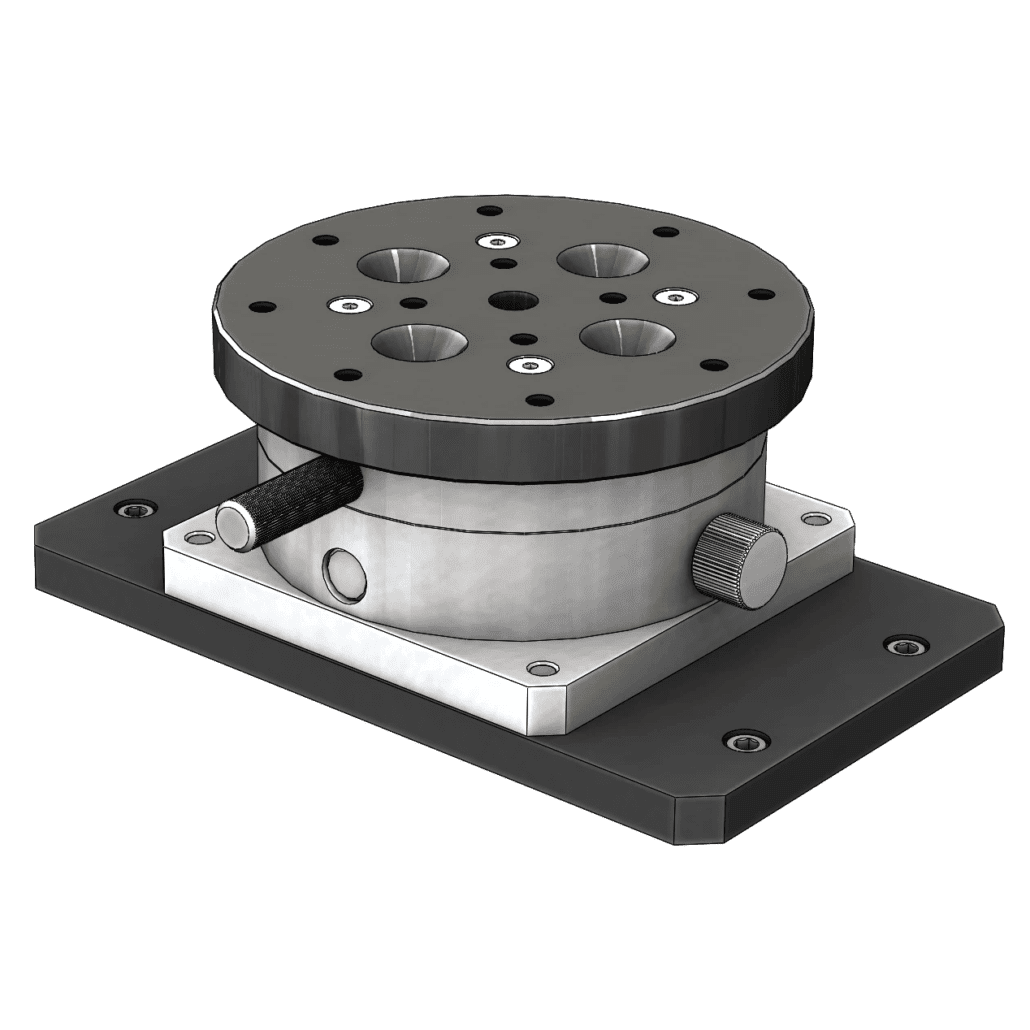

Base Indexer Kit

Model Number: KRI-MV-B

$1,600

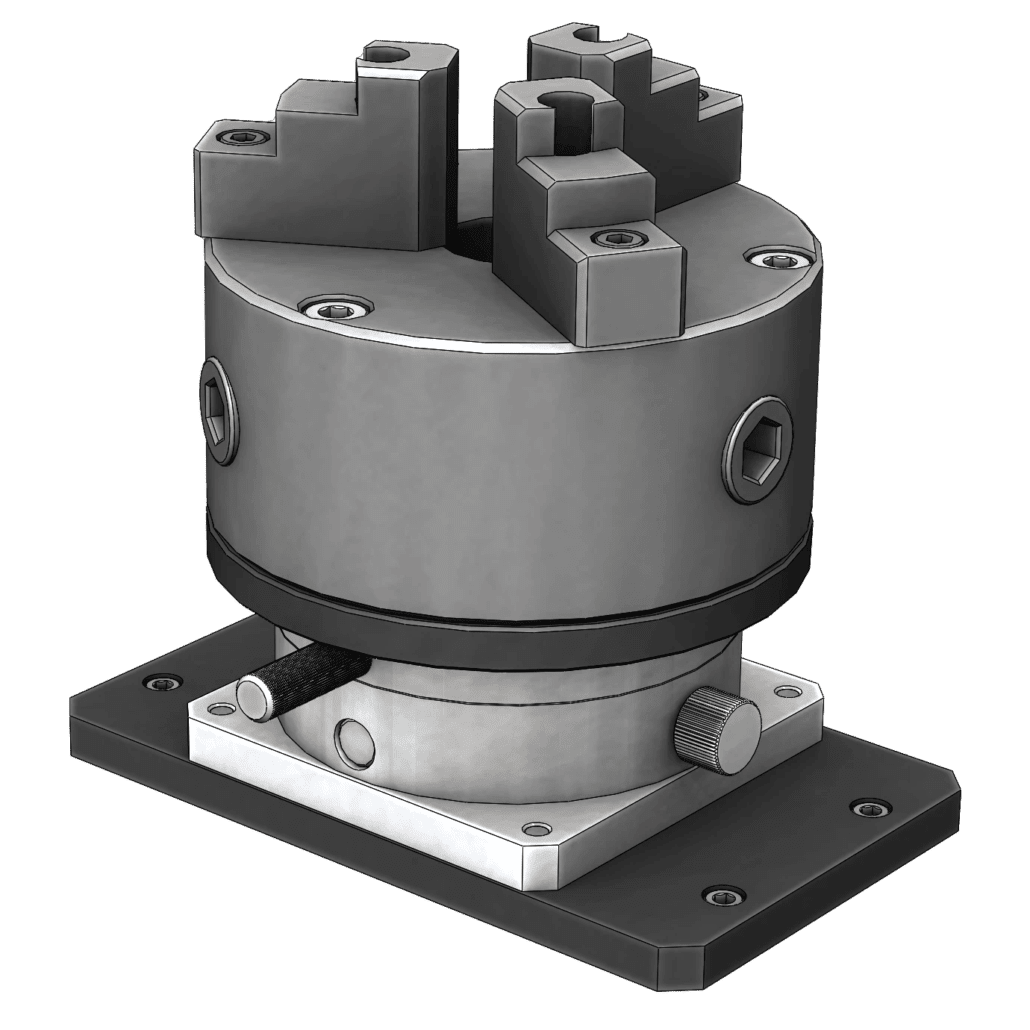

Chuck Indexer Kit

Model Number: KRI-MV-C

$2,350

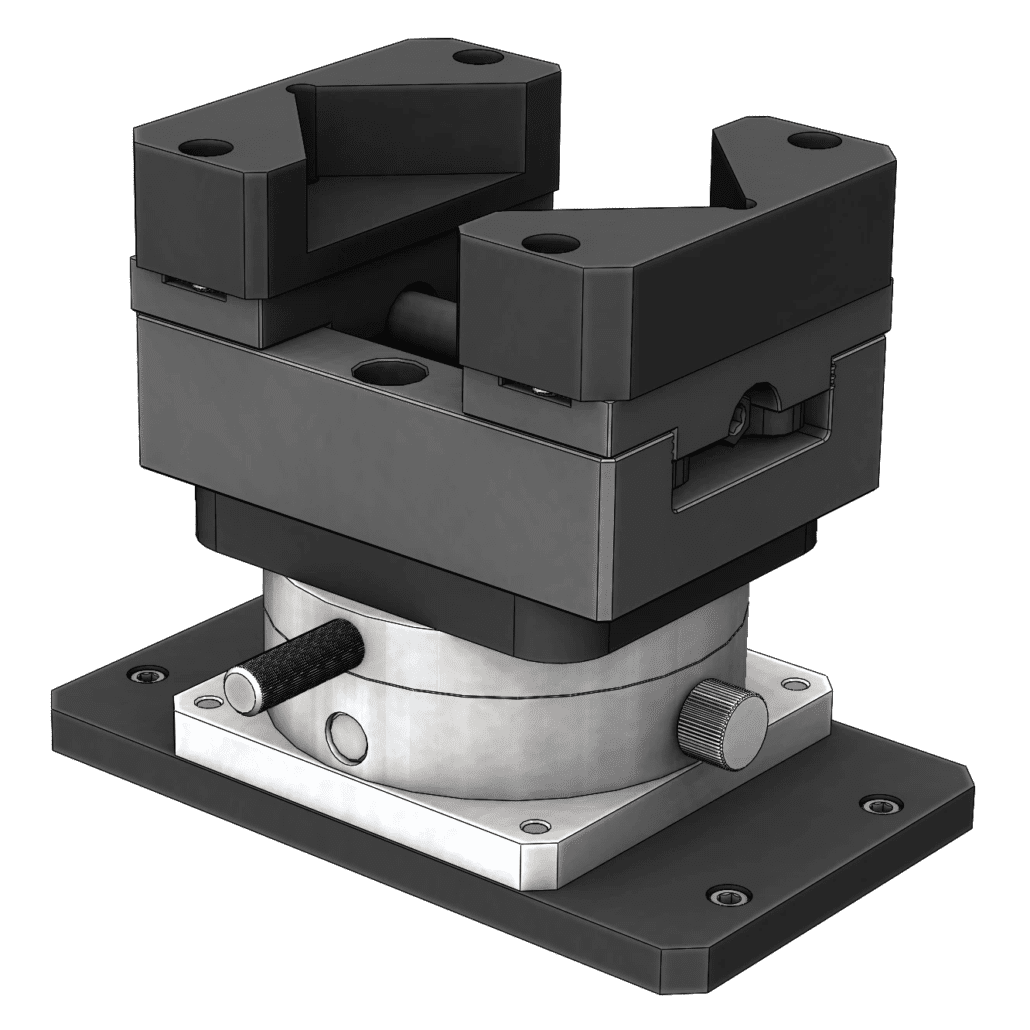

Vise Indexer Kit

Model Number: KRI-MV-V

$2,350

Pneumatic

Two Position Adjustable Pneumatic Rotary Actuator
Adjustable Travel Between 0 - 190 Degrees
Three models for different workholding requirements
Simple Mounting to Fixture Plate (Hardware Included)
Mounts in Multiple Positions & Orientations
Custom Vise Jaws and Workholding Fixtures Available

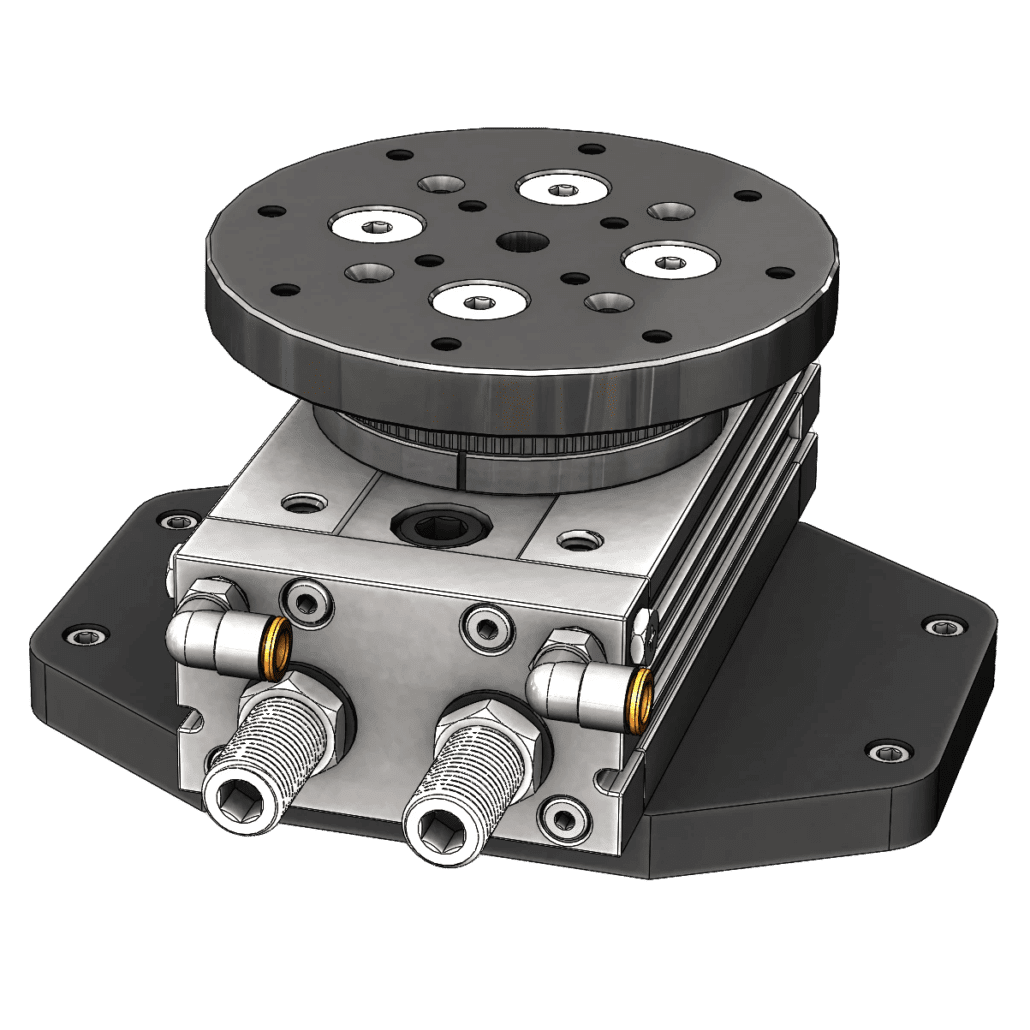

Base Indexer Kit

Model Number: KRI-PV-B

$1,970

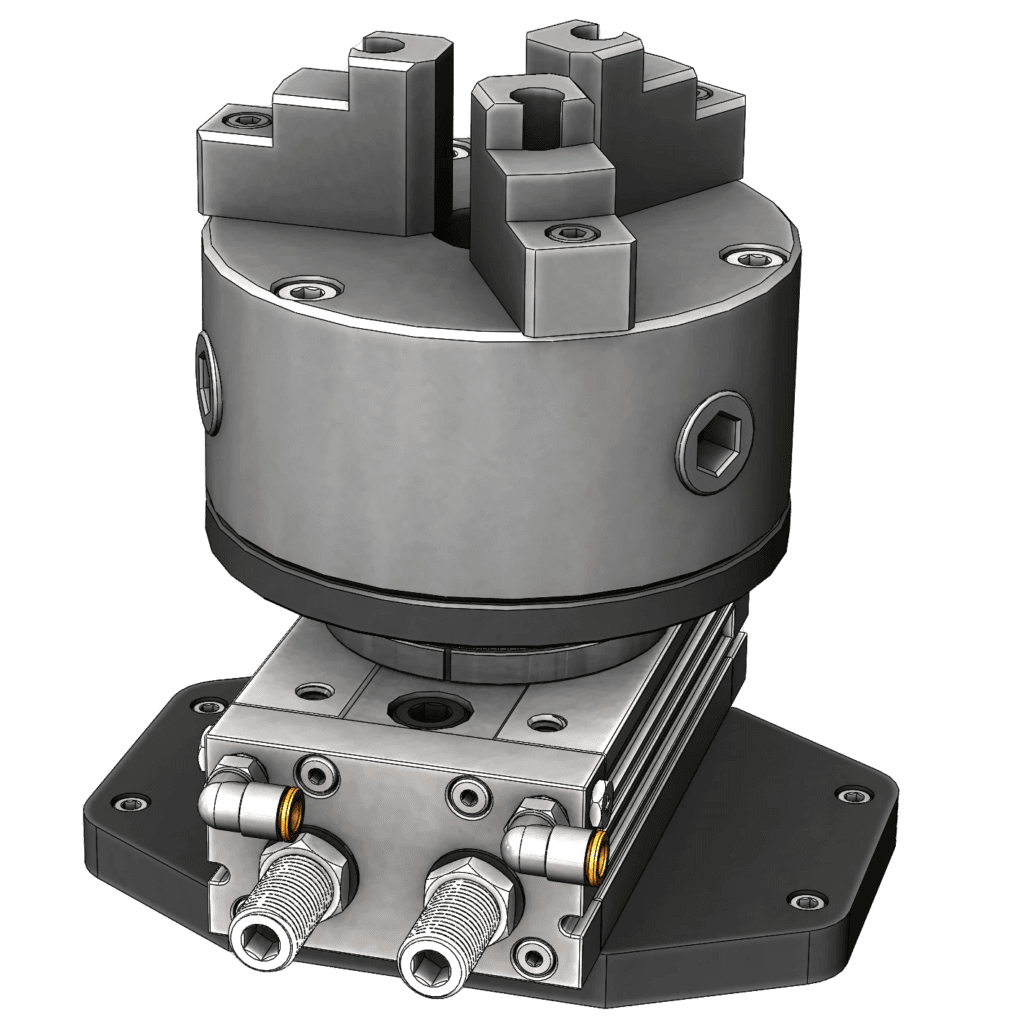

Chuck Indexer Kit

Model Number: KRI-PV-C

$2,680

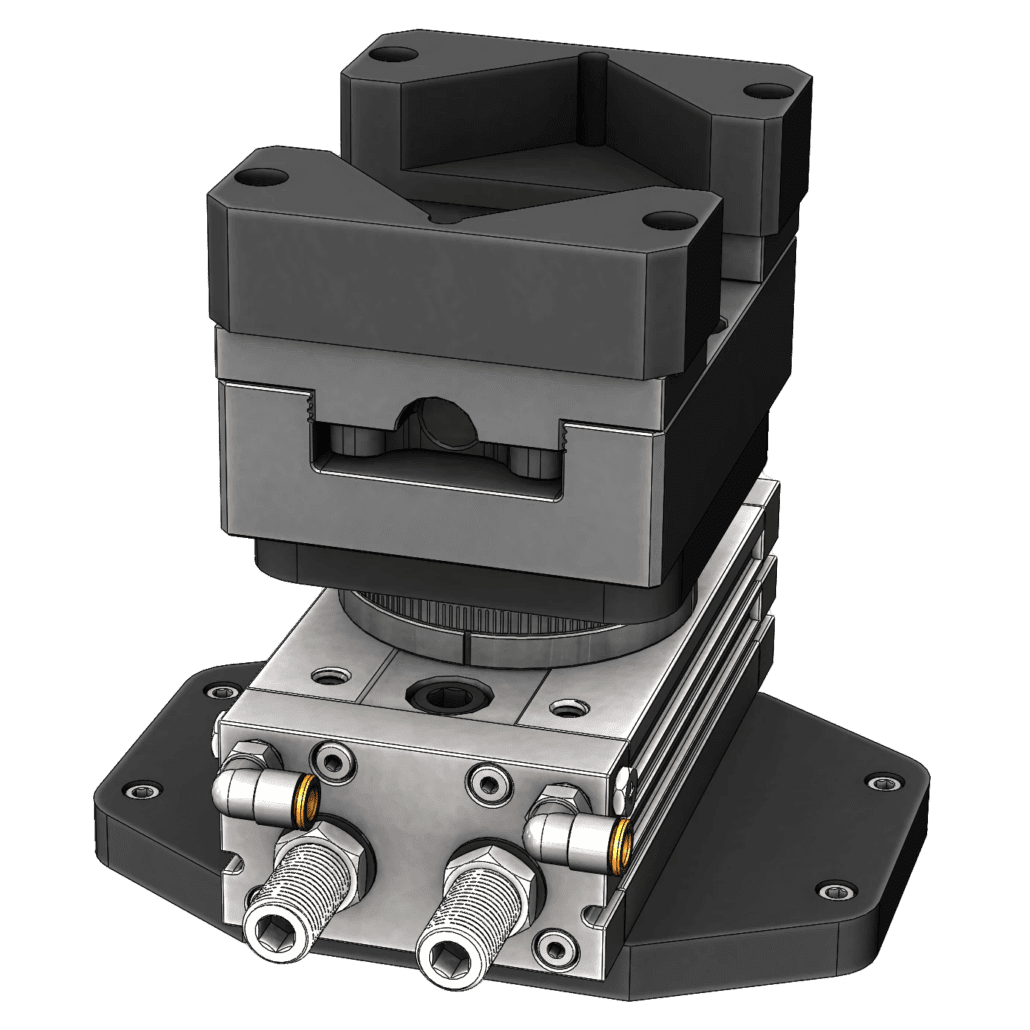

Vise Indexer Kit

Model Number: KRI-PV-V

$2,680

Order

If you are looking to order a rotary indexer kit alone, please fill out the form below. If you require both an enclosure and rotary indexer kit, please use the order form on our benchtop enclosure page: Benchtop Laser Marking Enclosures
