Workholding Kits

Angle Bar Kit

Explore our line of specialized workholding kits, each designed to make your laser marking process faster, easier and more precise.

With these three kits, you’ll find solutions that cover a broad range of part shapes and sizes and are perfect for a variety of marking applications.

All three kits integrate seamlessly with our KME series marking enclosures, and can easily be mounted in a variety of positions and orientations on our fixture plate.

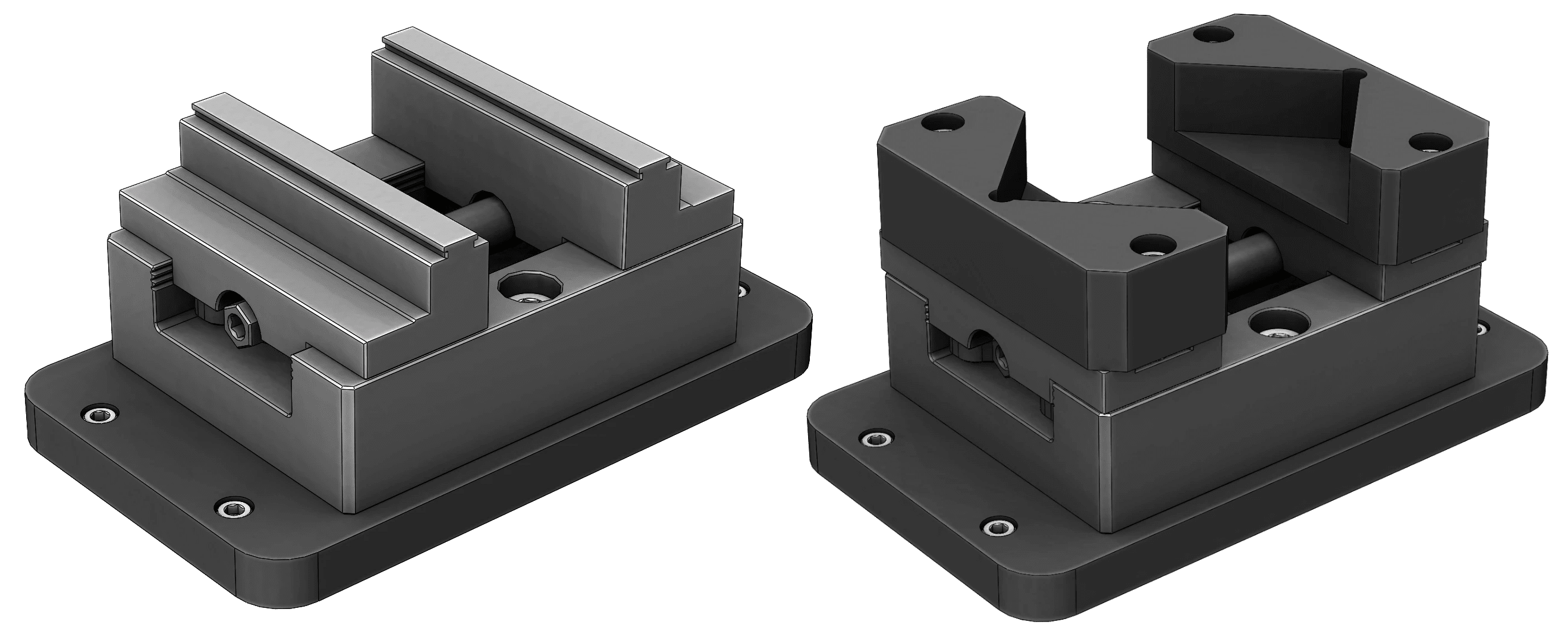

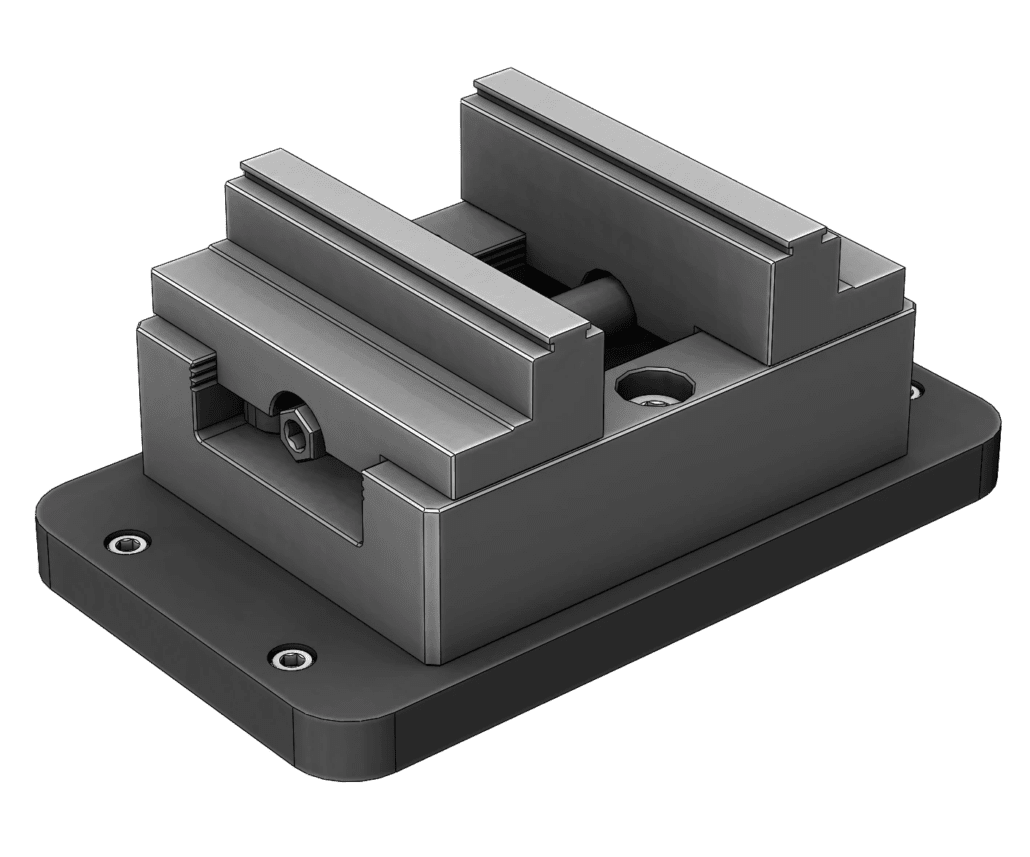

Our Flat Jaw Vise Kit and V-Jaw Vise Kit use self-centering vises that keep different parts in a consistent central position regardless of size.

Choose between the flat jaw or V-jaw variation depending on your specific needs, or contact us for additional custom jaw solutions.

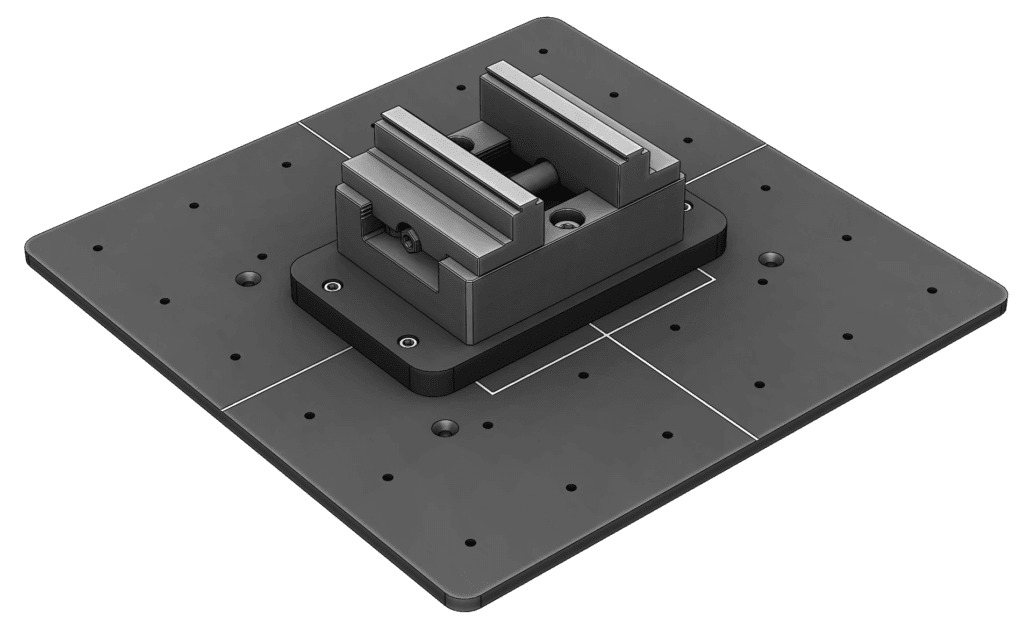

Both kits mount directly to our KME-FPS-12 Fixture Plate with included hardware, and can be positioned in numerous locations using the grid of fixture plate mount holes.

Flat Jaw Vise Kit

Model Number: KWH-1A

$645.00

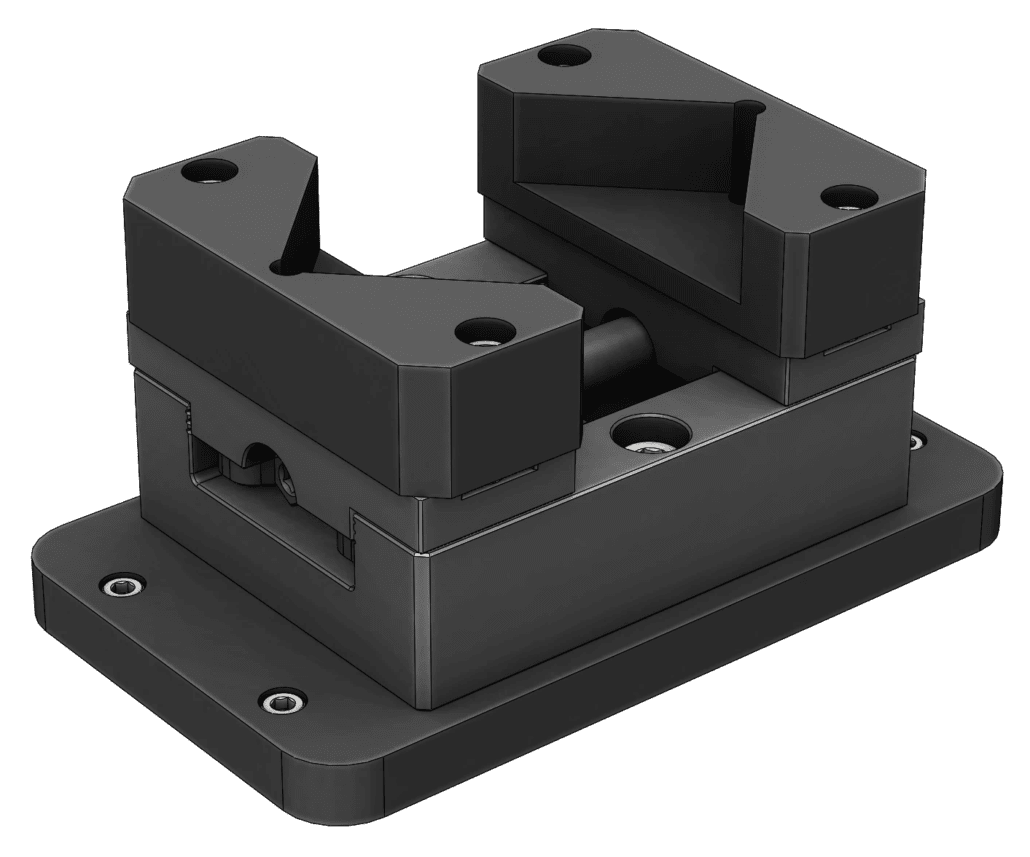

V-Jaw Vise Kit

Model Number: KWH-1B

$695.00

Designed for versatility and adaptability, the Modular Part Holding Kit includes a variety of unique components to locate and secure parts of many different shapes and sizes.

All of the components are made to work with our KME-FPS-12 Fixture Plate, allowing for flexible mounting options in different positions and orientations, supporting a wide range of setups.

With this kit, parts can be loaded and unloaded quickly and easily, making your laser marking operations both efficient and accurate.

Model Number: KWH-2

Price: $538.00

Download the product sheet to see part size limitations.

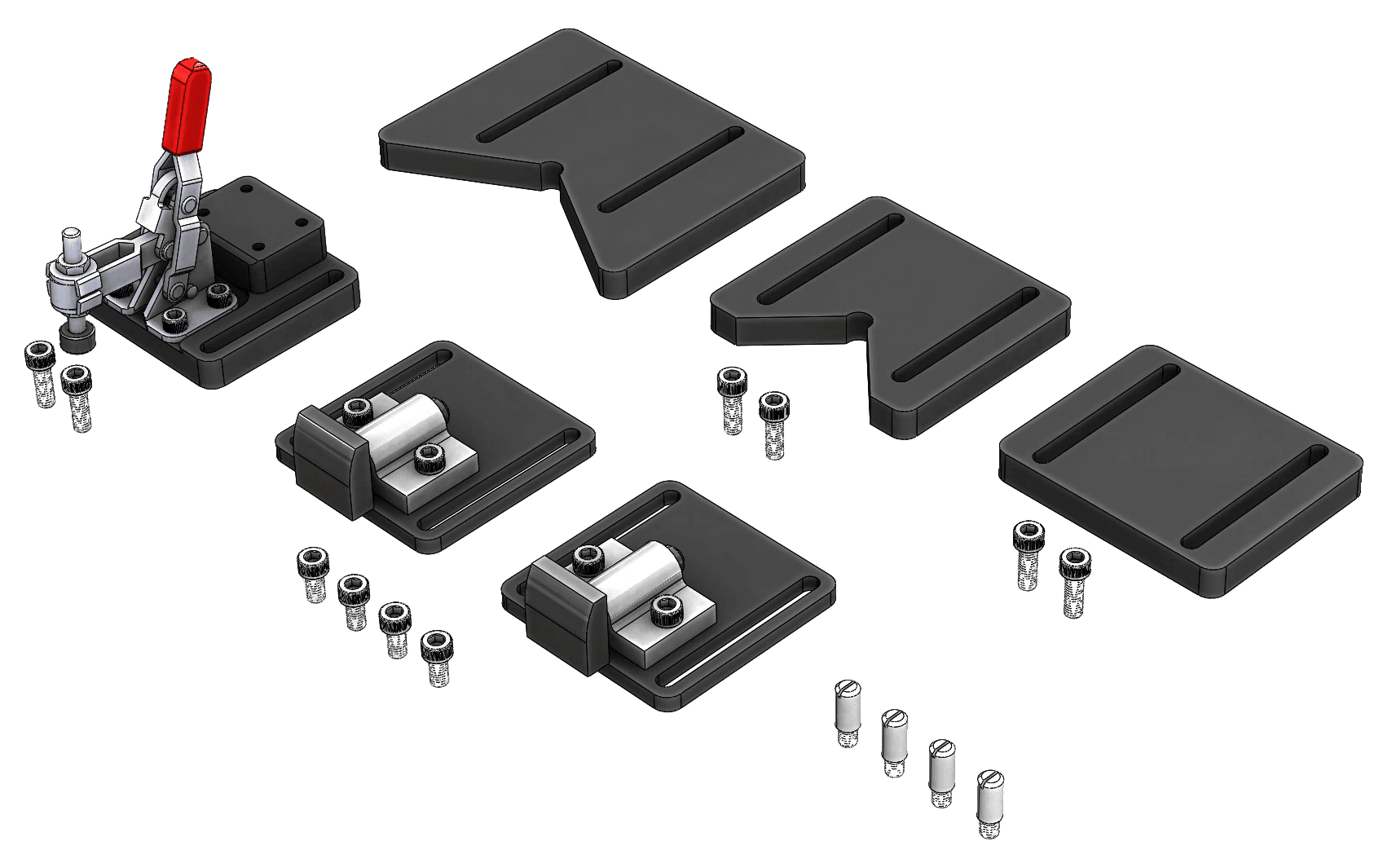

This Kit Includes the Following Items:

(1) Flat Bank Plate
(1) 90 Degree V-Notch Bank Plate
(1) 120 Degree V-Notch Bank Plate
(4) Threaded Locator Pins
(2) Spring-Loaded Plungers
(1) Dual Position Toggle Clamp
Mount Hardware

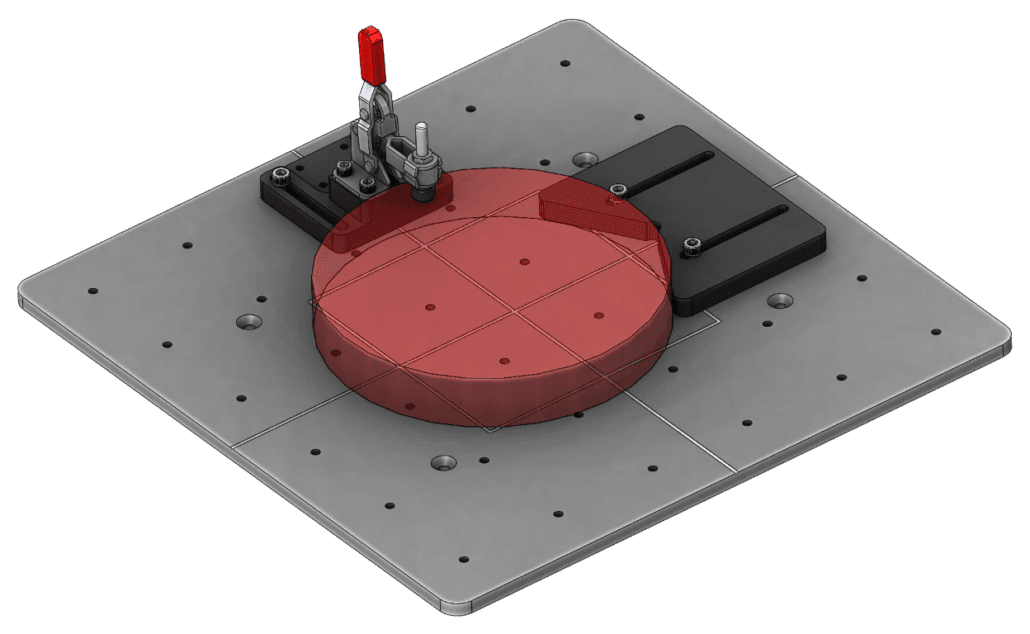

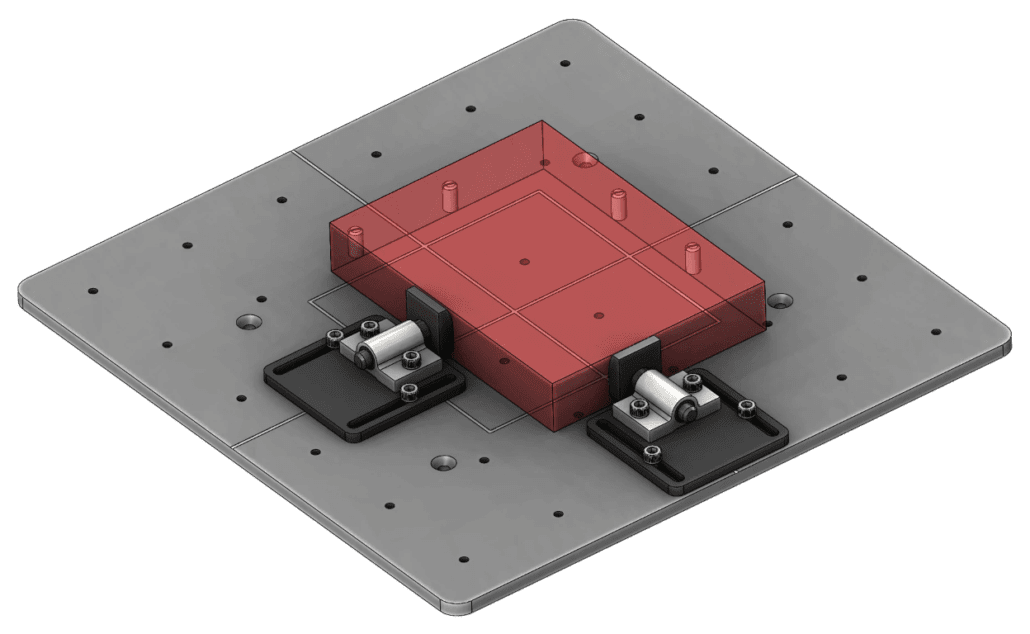

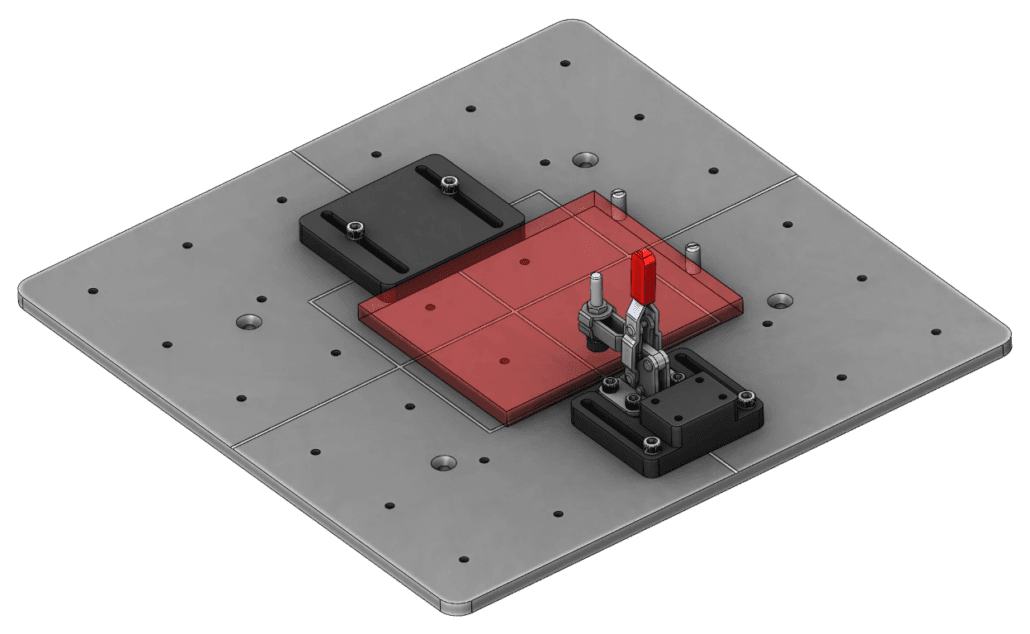

Example Configurations

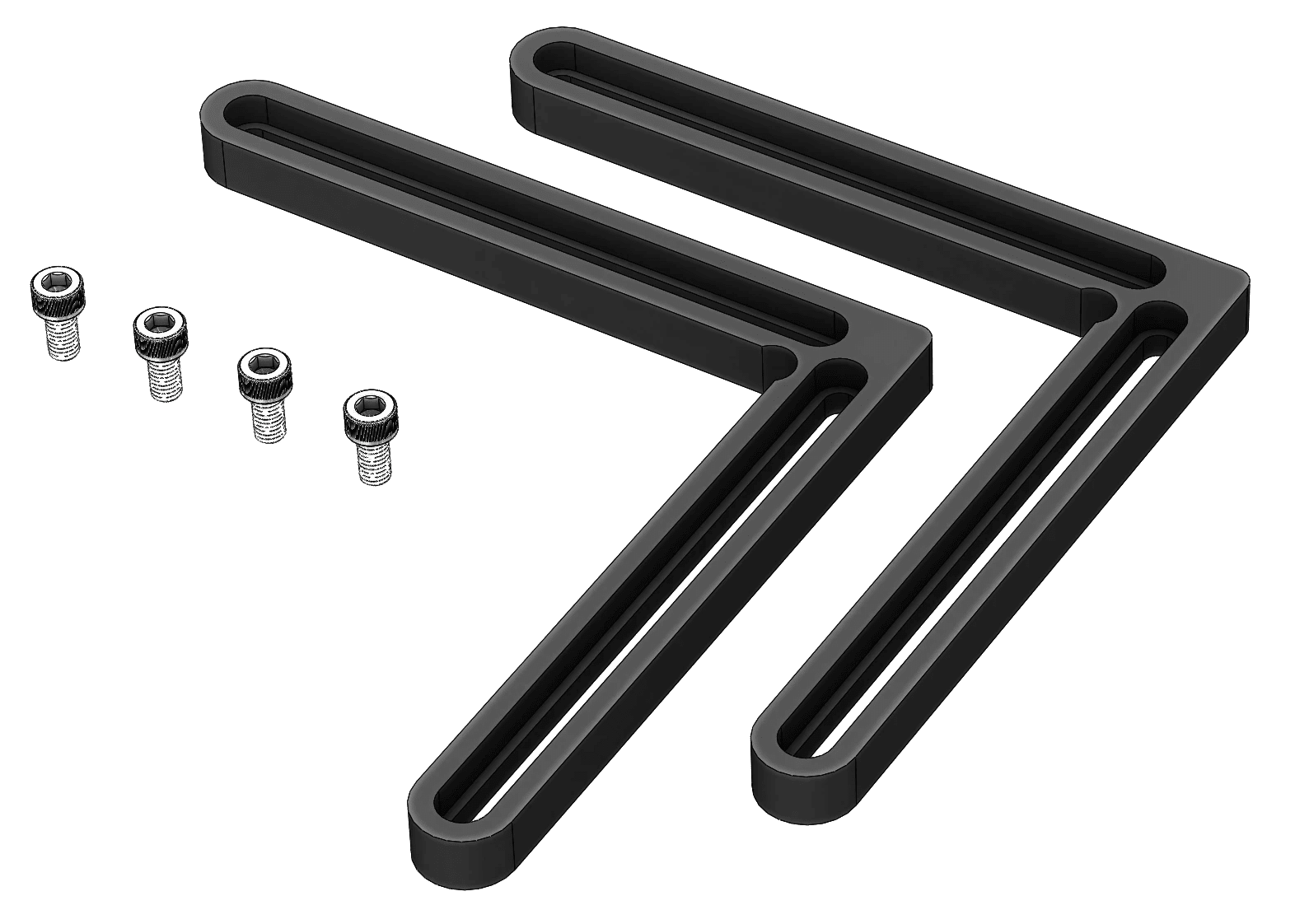

The Angle Bar Kit provides a straightforward and effective way to quickly position square and rectangular parts in your laser marking enclosure.

Designed for use with our KME-FPS-12 Fixture Plate, the angle bars can be easily adjusted and repositioned using the grid of mount holes.

Additionally, the angle bar slots allow for more precise position adjustment, giving you greater flexibility and control over part alignment.

Model Number: KWH-3

Price: $175.00

This Kit Includes the Following Items:

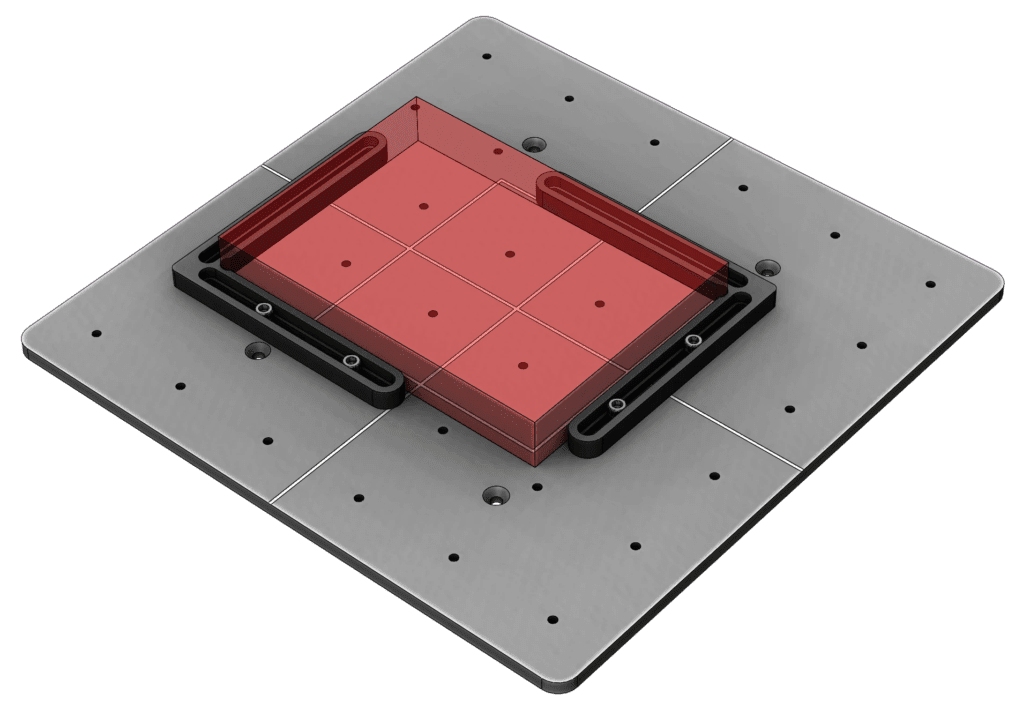

Example Configuration

Order

If you are looking to order a workholding kit alone, please fill out the form below. If you require both an enclosure and workholding kit, please use the order form on our benchtop enclosure page: Benchtop Laser Marking Enclosures

Order By Phone:

(203) 931-8852

Questions?
